Lightway Crystal 200, 300, 400, 600 + NEW F-series
The Lightway Crystal product line is unique because of the use of a glass roof dome. It is made of Bohemian crystal glass and it practically doesn’t get old. Compared to a plastic dome, it is resistant to aging, even with a barrage of UV light. The crystal dome will not yellow or discolor over time like plastic, therefore it's sunlight collection performance will stay the same for decades.
The crystal dome will collect daylight even if it is cloudy and it won't distort natural daylight colors.
The surface of the crystal is very smooth and hard therefore smog, dust particles, or other impurities in the air do not cling to it, which means it needs almost no maintenance.
The Lightway Crystal collection is produced in four sizes: 200, 300, 400, 600 plus the NEW F-SERIES: F-200, F-300, F-400 for facades.
The Main Features:
- Crystal glass dome resistant to UV light and aging
- Looks great on the roof.
- Suitable for pitched and flat roofs as well as facades
- Excellent power even in cloudy weather.
- Long lasting and highly reflective sun pipe.
- Quick and easy installation.
- Perfect range of sizes.
- Glass diffuser to compliment beautiful interior designs.
- Blue Performance thermal insulation element
10 year guarantee
Lightway provides a 10 year warranty for all products.
25 year guarantee
The highly reflective inner surface of the Lightway sunpipe is manufactured with pure silver using a chemical vacuum deposition process. Due to the high quality process and materials used, Lightway is able to provide a 25 year warranty on the reflective pipe components.
The expected life span of the Light way tubular skylight is at least 45 years without need of any service of maintenance.
Intura and lightway Crystal Tubular Skylights

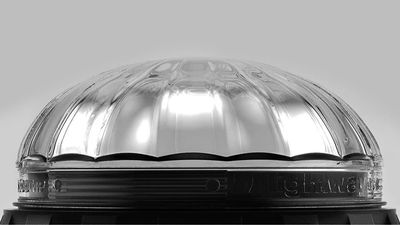

Crystal dome
Reflective Pipe
Crystal dome
The crystal roof dome is made of Bohemian crystal in the Czech Republic. It has a very long service life as well as great optical attributes and the ability to collecting sunlight during any weather. It is Made of Bohemian crystal and is Resistant to UV light and aging, does not turn yellow
Flashings
Reflective Pipe
Crystal dome
The flashings are made of strong and durable UV resistant ABS. The available options are made to fit most any roof or side wall/fasade. Pitched roof flashing for shingle or metal roof .
Flat roof options available upon request, including curb caps ,
New F-series flashing for all types of side wall applications (comes in "White Aluminum" RAL 9006 PMMA coating or custom colors with special request)
Reflective Pipe
Reflective Pipe
Reflective Pipe
The inside surface of the pipe is coated with a pure silver finish using a vacuum coating technology that provides very high total reflectance and excellent coating integrity, durability and U.V. resistance. The reflective layer is guaranteed not to crack, peel, or be warped by changes of temperature and humidity as well as long term exposure to UV. Connecting the pipes together or to the adjustable elbows, Blue Performance, dimmer, and ceiling diffuser is easy thanks to custom designed connection hardware, which come standard in every kit.
- 98% reflectivity inside pipe with minimal scattering
- 99.9% pure silver coating
- Join pipes together to conduct light throughout buildings
- 24.6" (625mm) long sections
Adjustable Elbow
Adjustable Elbow
Reflective Pipe
The adjustable elbow has an angle range of 0 - 45 degrees. It is used for custom routing of the reflective pipe without sacrificing light transmission. The adjustable elbow is easy to connect to another elbow, a pipe section, Blue Performance, a dimmer, or ceiling diffuser. The elbow is made from the same highly reflective and durable material as the pipe.
98% reflectivity inside pipe with minimal scattering
- 99.9% pure silver coating
- Change directions and route the tubular skylights throughout buildings
- Available in 0 - 90 degree option for LW 600
Ceiling Diffuser
Adjustable Elbow
Ceiling Diffuser
The glass ceiling diffuser is an important component in the tubular skylight that not only diffuses and equally spreads light in the room, but also becomes part of the aesthetic design of your interior. This high quality diffuser is made of glass, which doesn’t age or turn yellow and transmits the light without color change. The ceiling diffuser easy connects to an elbow, pipe section, a dimmer, or Blue Performance.
- Made of sodium-potassium glass
- White colored trim
- Custom colors upon special request
- Integrated gaskets to prevent air leakage
Blue Performance
Adjustable Elbow
Ceiling Diffuser
The Blue Performance insulation element prevents thermal transfer through the tubular skylight system. This is a very important component and one that is highly recommend for any location that experiences a large temperature difference between indoors and outdoors. Not only does Blue Performance save energy by preventing heat transfer, but an even more critical feature is that it prevents condensation formation inside the tubular skylight pipe and ceiling diffuser which could lead to dripping water and damage to your ceiling. Condensation is a phenomenon which almost everyone is familiar with and Lightway has a unique and perfect solution for the tubular skylight. Blue Performance is easy to connect to elbows, pipe sections, a dimmer, or ceiling diffuser.
- High efficiency argon filled dual pane glass assembly
- Insulating and support structure made of rigid styrofoam
- Glass heat transfer coefficient: U-value 0.6 W/(m²K)
- Perfect for "Green", "Passive", or "Net-Zero" building design
Dimmer
Base Kits
Base Kits
The dimmer is made from the same material as the reflective pipe. It employs a motor driven butterfly valve inside of the pipe section to reduce the supply of daylight light into the interior. It is easy to connect the pipe sections, elbows, Blue Performance or the ceiling diffuser.
- 120V AC power
- Wire to a wall switch
- Turns tubular skylight into a on/off daytime light fixture
Base Kits
Base Kits
Base Kits
The crystal tubular skylights are suitable for pitched and flat roof as well as facades. Every package includes all components and assembly accessories for the complete installation. The main difference between the base kits is the roof or wall flashing that will suit your specific building. If you need any help with choosing the correct base kit for you, please contact us and we will help.
Pitched roof kit includes:
crystal dome, roof flashing, 2x pipe sections, 1x elbow, ceiling diffuser, pipe connection hardware and aluminum tape, installation kit
F-Series kit includes:
crystal dome, side wall flashing, 1x pipe section, 1x elbow, ceiling diffuser, pipe connection hardware and aluminum tape, installation kit
See table below for guidance on LW tubular skylight size and typical light coverage area.
